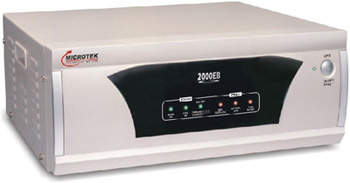

DIGITAL UPS EB
TECHNICAL SPECIFICATION – DIGITAL MODELS
| Model No |
EB 700/900/1100/1600
|
|
| Battery | EB 700/900/1100 | 1 Battery system |
| EB 1600 | 2 Battery system | |
| Waveform | TPZi wave | |
| Input AC Range | Wide (All): 100V ~300V AC | |
| Input DC Range |
EB 700/900/1100 |
10.5~14.2 |
| EB 1600 |
21~28.4 |
|
| Efficiency |
>84% (on battery mode) |
|
| Protections |
Overload :110% | Short-circuit: 300% |
|
| Charge current | UPS EB 700/900/1600 |
10A ±1A |
| UPS EB 1100 |
12A±1A |
|

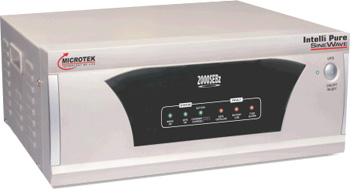

SINEWAVE SEBz
TECHNICAL SPECIFICATION – SINEWAVE MODELS
| Model No |
SEBz 700/900/1100/1600
|
|
| Battery | SEBz 700/900/1100 | 1 Battery system |
| SEBz 1600 | 2 Battery system | |
| Waveform | Pure SINEWAVE | |
| Input AC Range | Wide (All): 100V ~300V AC | |
| Standard(All): 180V~260V AC | ||
| Input DC Range |
SEBz 700/900/1100 |
10.5~14.2 |
| SEBz 1600 |
21~28.4 |
|
| Efficiency |
>84% (on battery mode) |
|
| Protections |
Overload :110% | Short-circuit: 300% |
|
| Charge current ALL Models | STANDARD |
10A ±1A |
| HIGH |
14A±1A |
|
UPS 24x7 HYBRID TECHNOLOGY
TECHNICAL SPECIFICATION
| Model No |
UPS 24×7 HB 725/950/1125/1650
|
|
| Battery | 24×7 HB 725/950/1125 | 1 Battery system |
| 24×7 HB 1650 | 2 Battery system | |
| Waveform | SINEWAVE | |
| Input AC Range | Wide (All): 100V ~300V AC | |
| Standard(All): 180V~260V AC | ||
| Input DC Range |
24×7 HB 725/950/1125 |
10.5~14.2 |
| 24×7HB 1650 |
21~28.4 |
|
| Efficiency :All Models |
>80% (on battery mode) |
|
| Protections |
Overload :110% | Short-circuit: 300% |
|
| Charge current ALL Models | STANDARD |
10A ±1A |
| HIGH |
14A±1A |
|

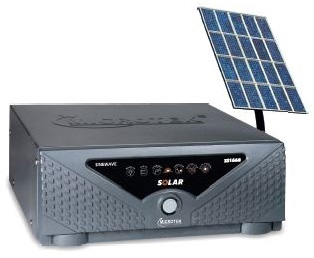

SINEWAVE HYBRID UPS SOLAR
Models : SS 1130/12V, SS1660/24V.
- Our solar UPS is integrated with an in-build 30 Amp Solar Charge Controller, which enables the conversion of solar power to electricity
- Our solar UPS always gives 1st preference to solar power. It runs the load from Solar Power whenever it is available. It switches to the mains power only when the solar is available.
- The SOLAR UPS has been specially designed, so that you get maximum benefit from the sun, Solar UPS will cut down your electricity consumption.
- Upto 500w solar panel for SS1130.
- Upto 1000w solar panel for SS1660.

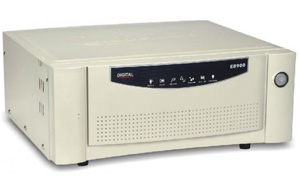

JUMBO UPS JM
TECHNICAL SPECIFICATION
| Model No |
DIGITAL: UPS JM1250/ JM2000
|
||
|
SINEWARE: UPS JM SW2000 |
|||
| Battery | JM1250 | 1 Battery system | |
| JM1250/ JM SW2000 | 2 Battery system | ||
| Waveform | JM1250/ JM2000 | TPZi wave | |
|
JM SW2000 |
Pure SINEWAVE | ||
| Input AC Range | JM1250/ JM2000 | Wide (All): 100V ~300V AC |
Std: 180V~260V VAC |
| JM SW2000 | Wide: 100V~300VAC |
Std: 180V~260V VAC |
|
| Efficiency :All Models |
JM1250/ JM2000 |
>84% (on battery mode) | |
| JM SW2000 | 80% (on battery mode) | ||
| Protections |
Overload :110% | Short-circuit: 300% |
||
| Charge current ALL Models | JM1250/ JM2000 |
12A ±1A |
|
| JM SW2000 |
14A±1A |
||

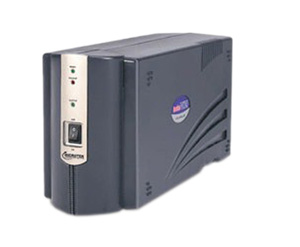

2 BATTERY DOUBLE POWER
TECHNICAL SPECIFICATION
| Model No | MDP800+ |
| AVR | 135~300V AC |
| Battery | 12V, 7.2AH × 2 |
| Back-up(typ. 1 PC) | 25~50min.Approx |

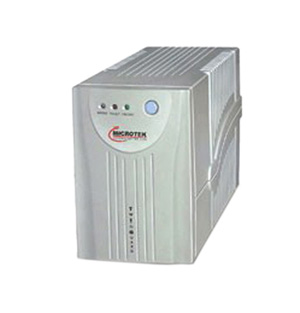

TWIN GUARD+
TECHNICAL SPECIFICATION
| Model No | TGE 1000 |
| AVR | 135~300V AC |
| Battery | 12V, 7.2AH × 2 |
| Back-up(typ. 2 PC) | 15~25min.Approx |
| Back-up(typ. 1 PC) | 40~50min.Approx |
